Multitask Platform JM-50

Reliable, high quality automatic insertion
with unmatched value

 Movie Catalog download Contact

Features

  • Ideal for high-mix low-volume production
  • New, flexible feeders increase component range providing superior productivity and faster changeover
  • Huge variety of applications
  • New Mini Chuck Nozzles support a wide range of components, reducing cycle time, decreasing tooling costs, and simplifying programming
  • Largest installed base thanks to high quality and unmatched reliability

2071

2070

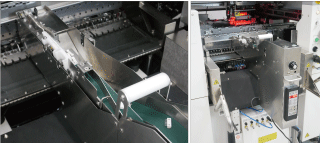

General-purpose bulk feeder is ideal for loose parts

Mini chuck nozzle

Movie

Specification

Board size Single clamping 50×50㎜～410×360㎜
Double clamping 50×50㎜～800×360㎜
 PCB weight 2kg
Max. component height 30㎜
 Component size 0603～□50㎜
 Power supply 3-phase AC200～415V
Apparent power 2.2kVA
Circuit breaker Standard
Air consumption 81L /min
Conveyor height 900㎜、950㎜
 Machine dimension (WxDxH) 1,454×1,505×1,450㎜
Mass (approximately) 1,300kg

Options

 Rear side operation unit ●
950mm conveyor height (SMEMA) ●
 3D Vision centering system ●
Lead correction jig ●
 Feeder trolley ●
Keyboard ●
Automatic conveyor width adjustment ●
External signal tower ●
Super foot ●

Feeder capacity*¹

Bankd Max,SMT tape
feeders (8mm)		 Radial feeder Axial feeder Stacked stick
feeder		 General purpose
bulk feeder MVF		 Tray holder TRSSNK
Number of trays
MRF-S MRF-SN MRF-L MAF-S MAF-L Full Half
18mm pitch 56 18 18 14 14 10 10 5 1 2 40
12mm pitch Not applicable 16 18 12 16 12 12 6 1 2 40

*1 Max quantity of feeders for given type.
*2 Head height may be restricted depending on feeder location.
