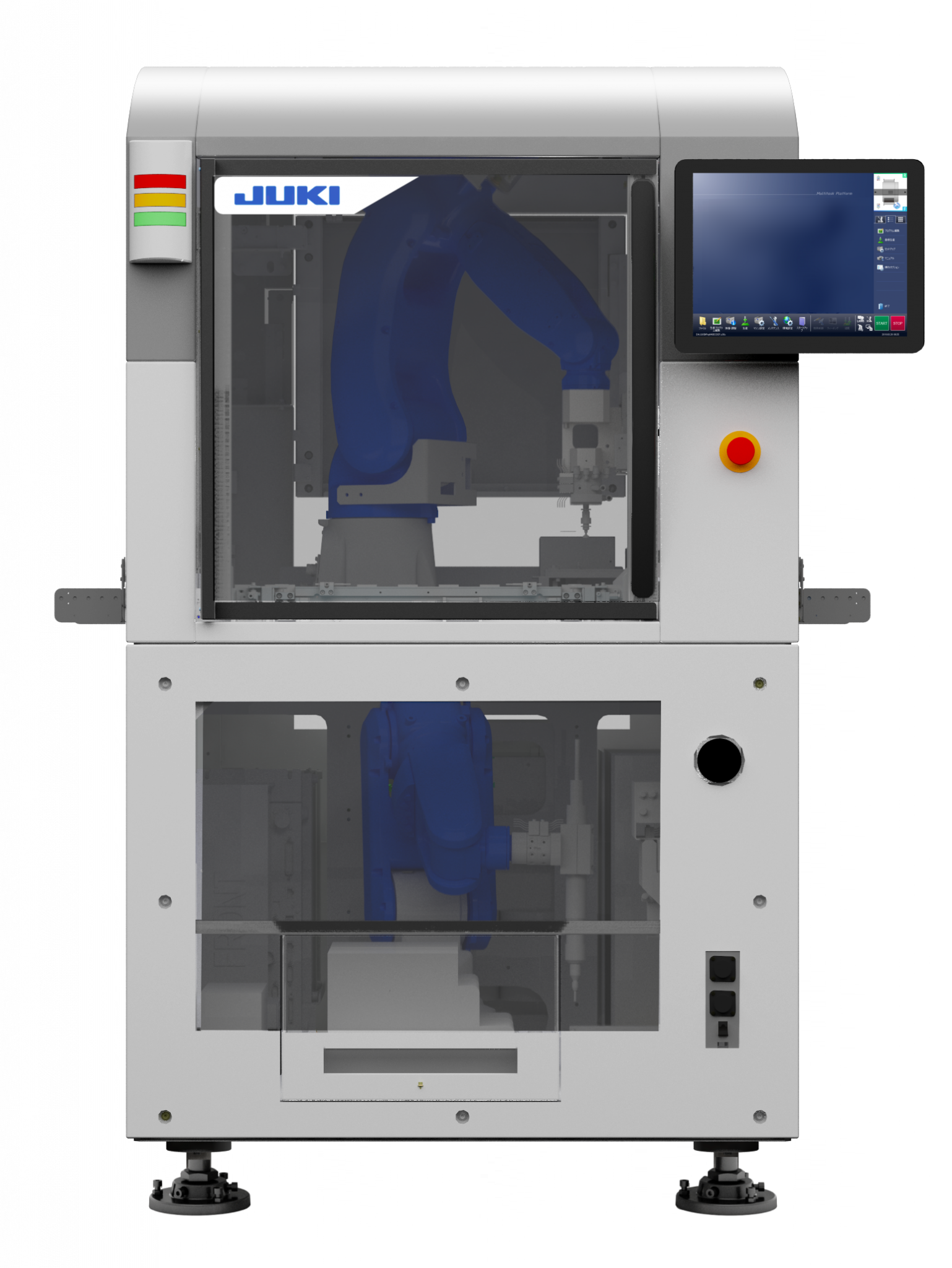

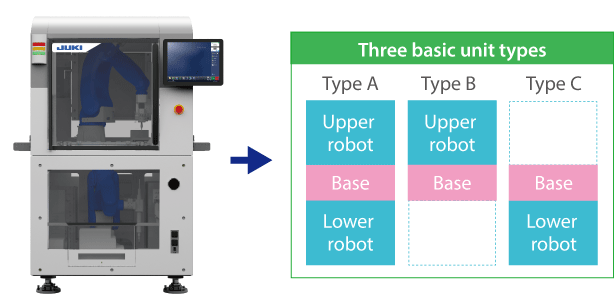

By setting up different robots at the top and the bottom sections, multiple tasks can be achieved at the same time.

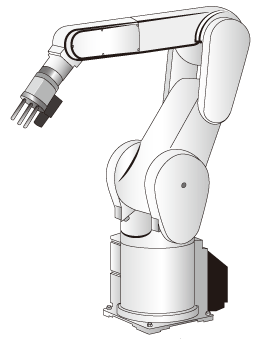

|Upper section is
|Lower section is
Using Juki’s original 3D image recognition system allows more accurate recognition of parts of any shape.
Can also recognize SMT leads, metals,plastics, etc.

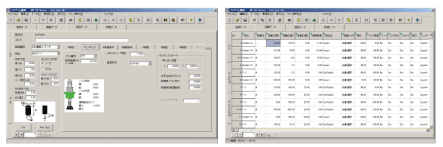

New programs can be easily generated by using the same programs from the placement machines. Customers, even new ones, can get to production quickly. The upper and lower robots are also compatible with robots from many different companies.
|Conveyer||Base frame||User interface||Control/power supply||3D recognition|
|Soldering||Silicon coating||Board cutter and separator||Dust Extraction|

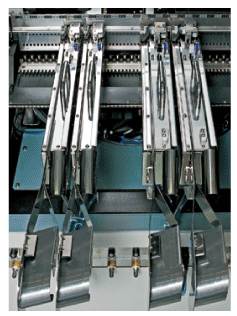

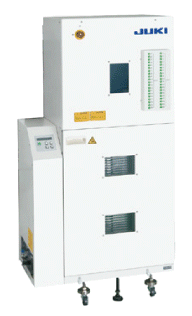

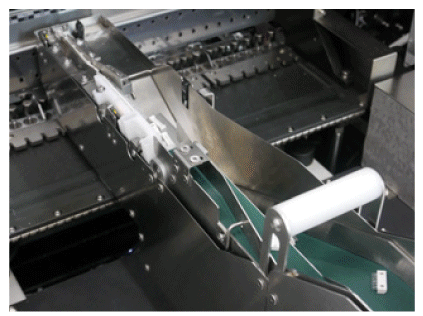

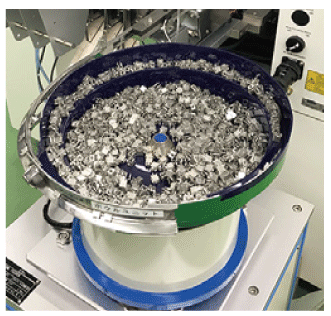

|Parts feeder||Radial feeder||Tray server|
