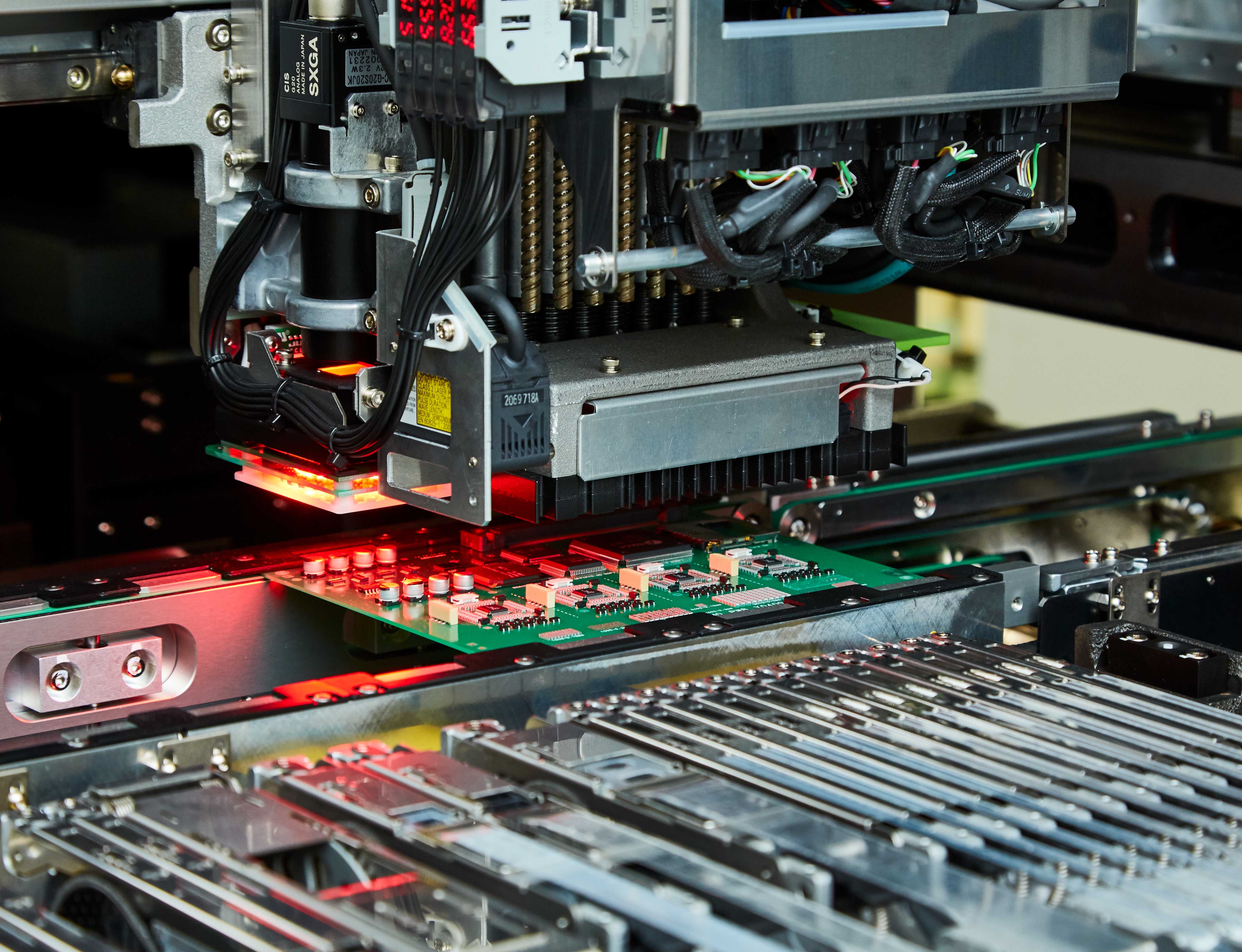

“The 8-nozzle “”Takumi head”” automatically changes the laser sensor height according to the height of component that to be centered.
Various components from ultra-small component to large component can be optimally placed with best tact time.

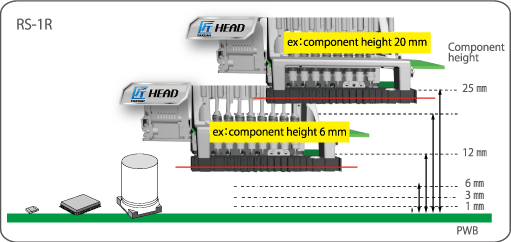

RS-1R: 6 levels (1, 3, 6, 12, 20, 25 mm) can be selected arbitrarily.

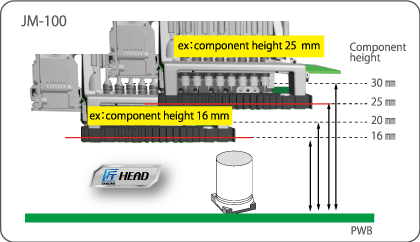

JM-100: 4 levels (16, 20, 25, 30 mm) can be selected arbitrarily.”

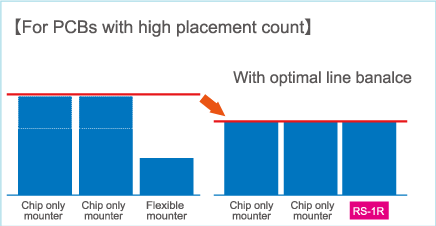

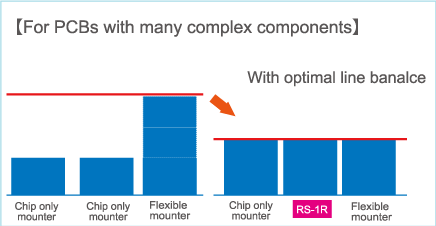

Changing the RS-1 functionality does not require head replacement. The revolutionary design self-optimizes based on the production requirements. The RS-1R can reduce the workload on high speed. A line with two or more RS-1Rs can adjust to a wide variety of production requirements from high speed to high flexibility.
