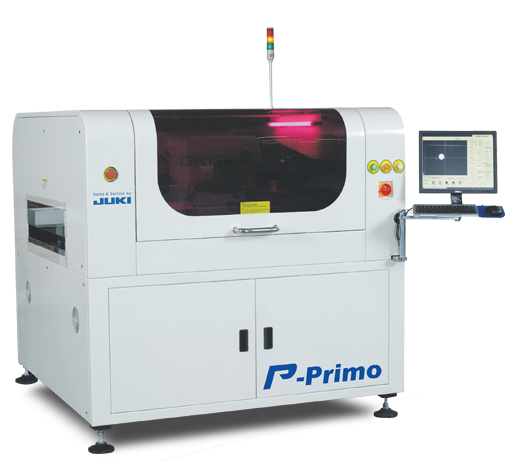

P-PRIMO

Screen-Printer

JUKI’s mid-size screen printer P-PRIMO aims at medium-format printed ciruit boards with sizes of up to 850 × 610 mm. The machine is delivered with a well-structured, easy to use software, which allows the construction of a production programme in less than 8 minutes. Further functions that are included with delivery: automatic stencil cleaning, 2D solder paste inspection, top and side clamping and many more!

Stencil Apertures Inspection System (option)
SPI Closed-Loop (option)
Temperature, Humidity Monitoring & Display (option)
External Barcode Scanner for PCB Traceability (option)

BROCHURE (PDF)

Long-Lasting Accuracy

The machine table and squeegee carrier are cast, not welded. Therefore guaranteeing high torsion resistance and ensuring print accuracy to remain unchanged for years.

High Flexibility

P-PRIMO and JUKI Pick and Place machines as well as JUKI Reflow Soldering Ovens enable needs-based, individual SMT line solutions.

« »

PCB	STENCIL	POWER	SOFTWARE
PCB Size (L × W) min. 100 × 65 mm / max. 850 × 610 mm PCB Thickness min. 0.4 mm / 8 mm PCB Margin 3.5 mm PCB Weight max. 5 kg	Frame Size (L × D) min. 737× 737 mm / max. 1,100 × 850 mm Frame Thickness min. 12 mm / max. 43 mm	Power Supply 220 V ± 10 %, 50 / 60 Hz ACCompressed Air 6 Bar Ambient Conditions 5 – 40° C, 20 – 65 % RH	Operating System Windows 7 Interfaces Ethernet, USB, SMEMA, Cogiscan IFSNx / TTC
